Red Dot Optics for Rifles and Tactical Shooting

Red Dot Optics for Rifles, Handguns and Shotguns

Red dot optics use an illuminated aiming point to help the shooter focus on the target rather than align multiple sight planes. This collection includes pistol reflex sights, rifle red dot scopes, green-dot models, multi-reticle optics and holographic weapon sights from brands represented by SIG Sauer, Trijicon, ZeroTech, Meprolight, Ruger and EOTech.

What Is a Red Dot Optic?

A red dot optic is usually a non-magnified electronic sight that displays an illuminated aiming point inside the viewing window. Most conventional models use a light-emitting diode and a coated lens to reflect the dot toward the shooter’s eye. This lets the shooter maintain visual attention on the target while using the dot as the aiming reference.

How Red Dot Scopes Work

For anyone researching how red dot scopes work, the principle is simple: the optic creates an illuminated reticle that appears to rest on the target. Once mounted and zeroed, the dot represents the firearm’s point of impact at a selected distance. The optic does not automatically compensate for ammunition, trajectory, mounting height or distance, so a verified zero remains essential.

What Are the Main Types of Red Dot Sights?

The main types of red dot sights are open reflex sights, enclosed-emitter red dots and holographic weapon sights.

Open Reflex Sights

Open reflex sights use a compact frame with an exposed viewing window. Their lightweight, low-profile design is common on optics-ready handguns. Footprints such as RMR, RMSc and Shield patterns are not interchangeable, so the slide cut or adapter plate must match the optic.

Enclosed-Emitter Red Dots

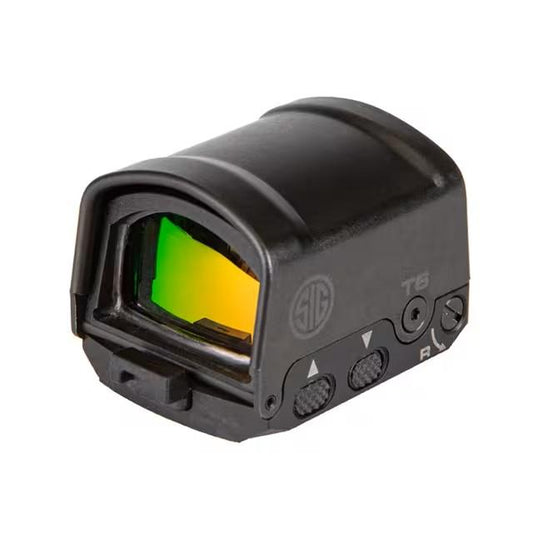

An enclosed-emitter red dot places the light source and optical path inside a sealed housing, helping protect the emitter from moisture, dust and debris. Full-size enclosed sights are often used on rifles, while enclosed micro optics are designed for handgun slides.

Holographic Weapon Sights

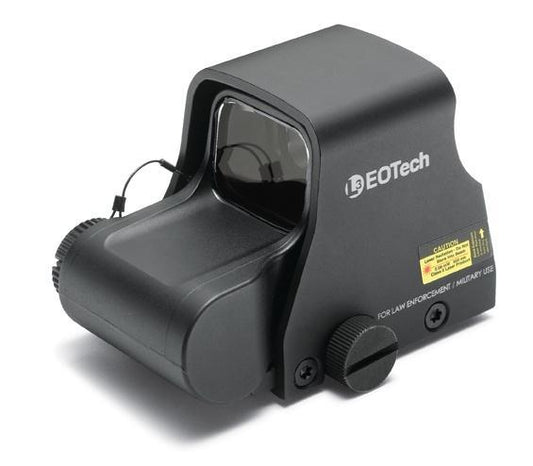

Holographic sights use different reticle technology from standard LED reflex sights. EOTech XPS models in this collection illustrate a common format, with a large outer ring and one or more smaller aiming dots. Although both formats are non-magnified, a holographic sight is not technically the same as a conventional red dot.

MOA Explained: What Does Dot Size Mean?

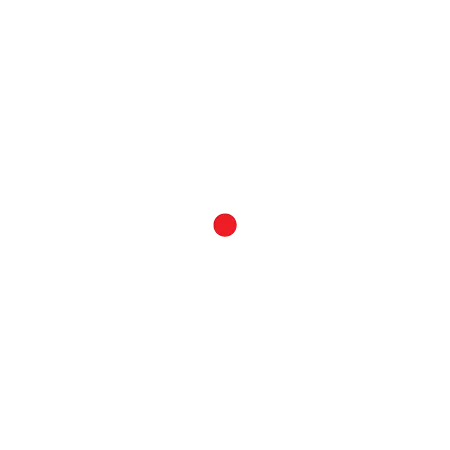

MOA in shooting means “minute of angle,” an angular measurement used to describe reticle size and sight adjustment. One MOA covers approximately one inch at 100 yards. A 3 MOA dot therefore covers about three inches of the target at 100 yards, while a 6 MOA dot covers about six inches.

2 MOA vs 3 MOA

In a 2 MOA vs 3 MOA comparison, both are relatively fine aiming points. A 2 MOA dot covers slightly less of the target and may provide a more refined sight picture. A 3 MOA dot remains compact but can be easier for some users to locate quickly.

What Is the Difference Between 3 MOA and 6 MOA?

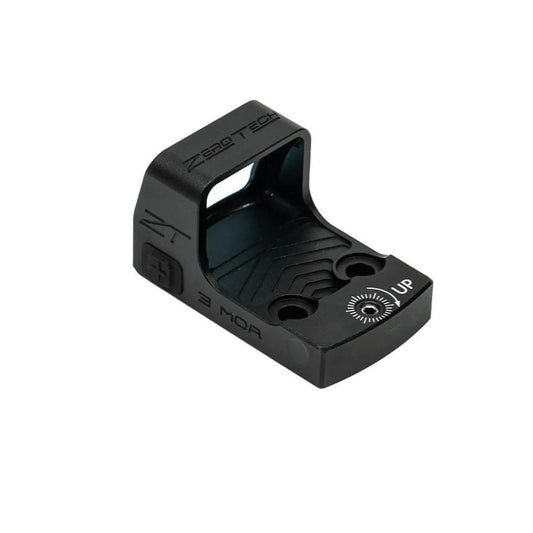

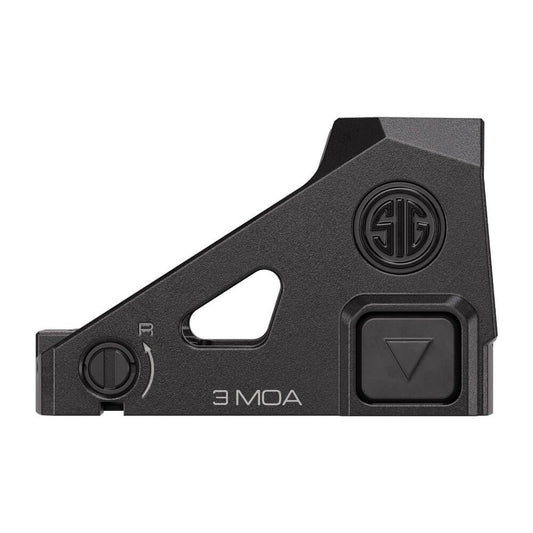

The difference between 3 MOA and 6 MOA is mainly apparent size. A 3 MOA dot obscures less of the target, while a 6 MOA dot appears larger and is often easier to see during close-range practice. The collection includes SIG Sauer ROMEO-MDC 3 MOA and 6 MOA sights and Trijicon SRO optics in several dot sizes.

Matching Red Dot Optics to the Firearm

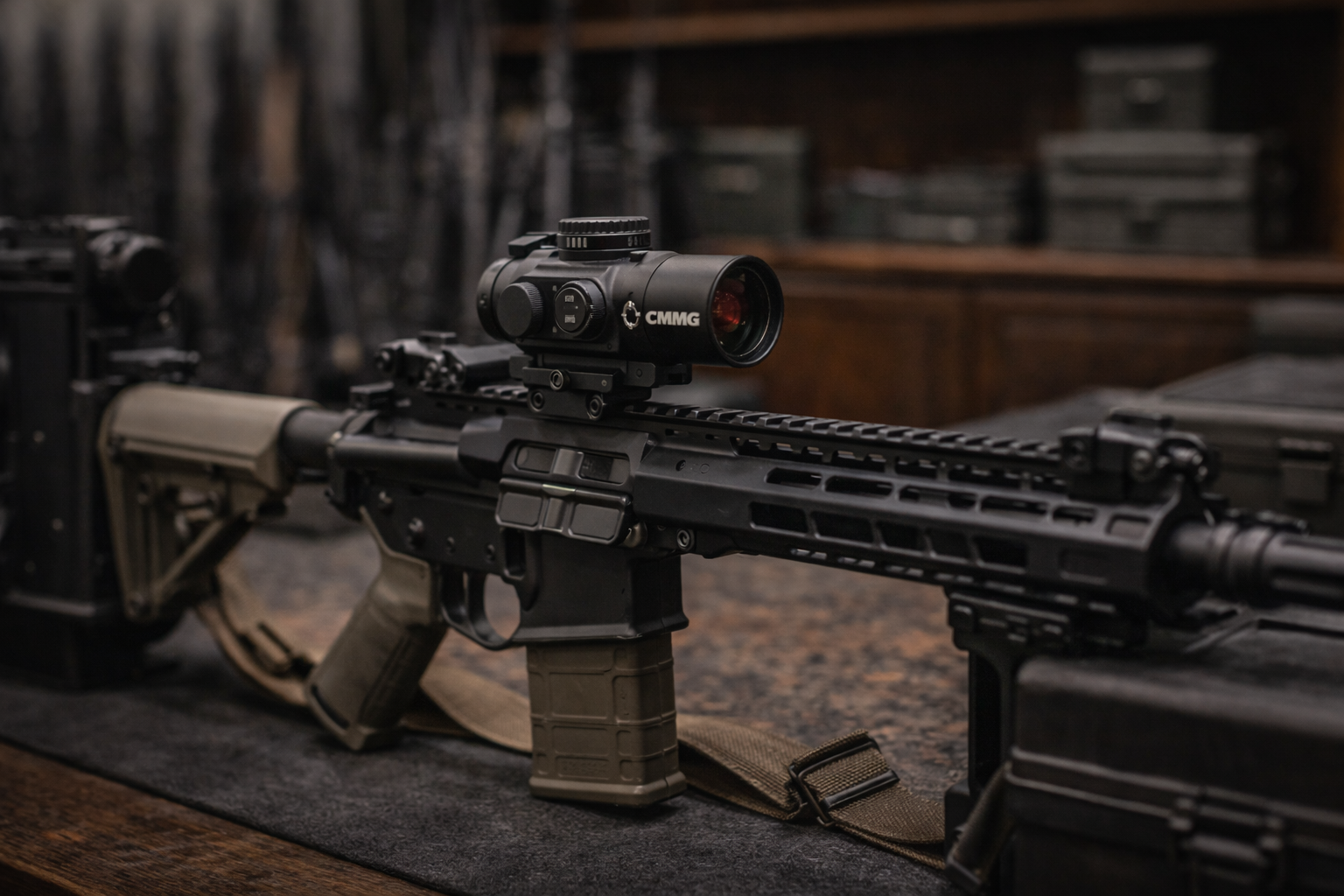

Rifle and Carbine Red Dot Optics

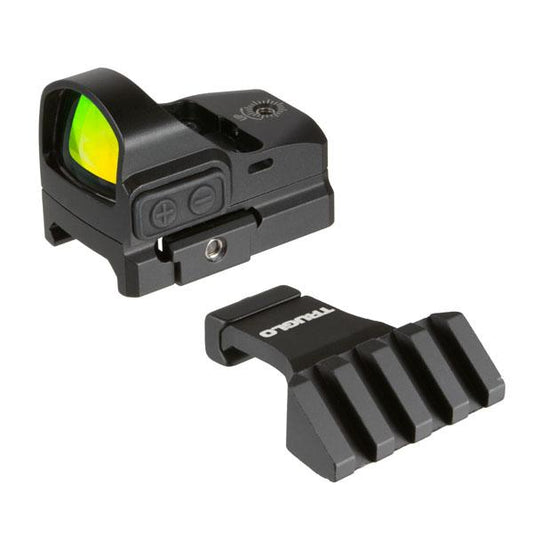

A reflex sight for rifle use normally requires a compatible rail mount and suitable mounting height. Mounts may be low, absolute co-witness or lower-third co-witness. A compatible magnifier can sometimes be positioned behind the red dot. The optic may serve as the primary aiming system or as a secondary sight beside a magnified optic.

Handgun Micro Reflex Sights

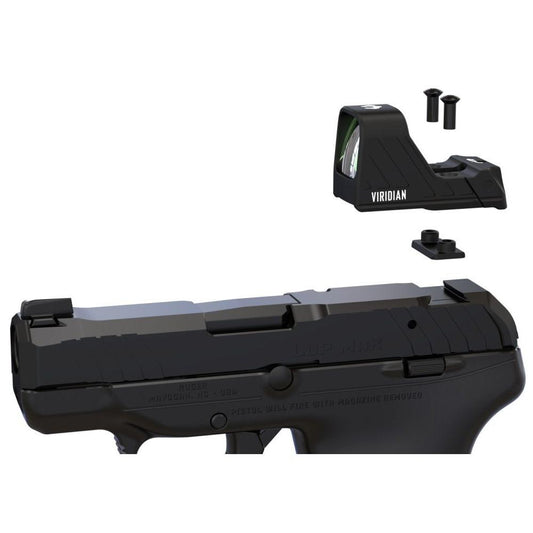

Handgun optics must match the slide cut, mounting footprint or adapter plate. RMSc-pattern sights are common on slim handguns, while RMR-pattern optics are used on many compact and full-size pistols. Window size, deck height and battery access can affect fit.

Shotgun Red Dot Sights

Shotgun optics may attach through a receiver rail, drilled-and-tapped mount or purpose-built plate. Suitable models should tolerate recoil and retain zero. Reticles may use a single dot or a circle-dot pattern.

Which Red Dot Features Matter?

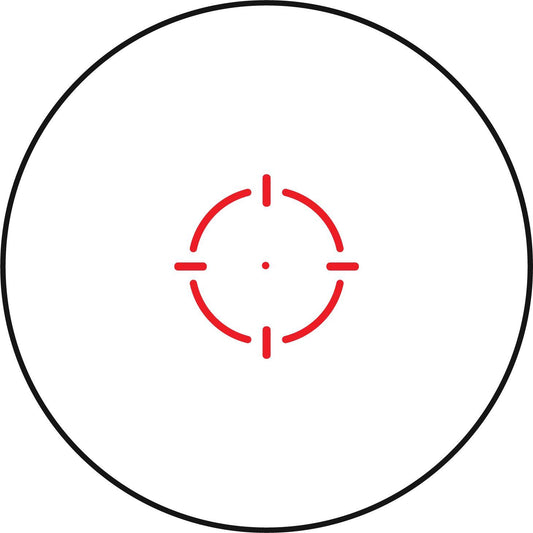

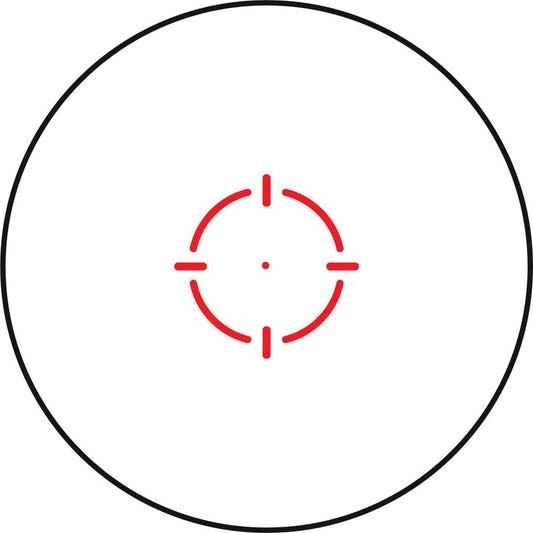

Important features include dot size, reticle color, brightness settings, battery access, motion activation, housing design, lens clarity, water resistance and mount compatibility. Green-dot optics may be easier for some users to distinguish against certain backgrounds. Side-loading batteries can permit replacement without removing the optic, while motion-activated illumination may extend battery life. Multi-reticle systems can provide a single dot, a larger circle or a combined circle-dot display.

How Do You Sight In a Red Dot Optic?

Confirm that the optic and mount are compatible, correctly seated and tightened according to the manufacturer’s instructions. A boresight can provide preliminary alignment, but it does not replace live-fire confirmation.

Can You Sight In a Red Dot Scope Without Shooting?

A mechanical or laser boresight can place the dot near the expected point of impact without firing. However, anyone researching how to sight in a red dot scope without shooting should treat boresighting only as an initial step. Final zero must be confirmed with the intended firearm and ammunition at a controlled range.

Red Dot Optics FAQs

Are Red Dot Sights Magnified?

Most red dot and reflex sights are 1x and do not provide optical magnification. Some rifle setups can use a separate flip-to-side magnifier.

Is a Red Dot the Same as a Reflex Sight?

A conventional red dot is generally a type of reflex sight. Holographic sights use a different method to create the reticle.

Does a Larger Dot Mean More Accuracy?

No. A larger dot may be easier to locate, while a smaller dot covers less of the target. Accuracy also depends on zero, stability, ammunition, eyesight, training and distance.

Responsible Setup and Training

Install every optic according to the firearm and optic manufacturers’ instructions, verify zero during structured range practice and periodically check the mount. Firearms should be unloaded during optic installation or maintenance and stored securely in accordance with applicable laws.
